Port-A-Lift

PAL Series.

Maximise Flexibility, Safety, and Productivity When Lifting and Rotating Heavy Workpieces

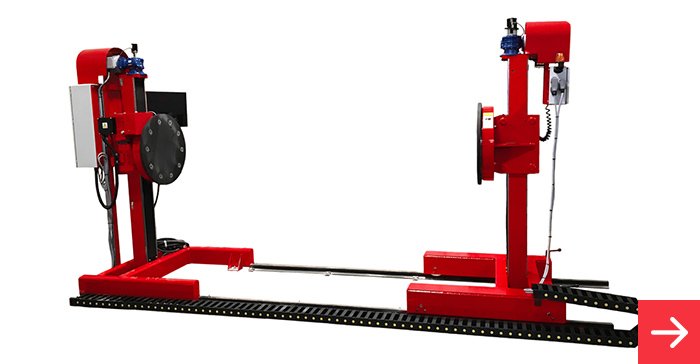

When it comes to maximising efficiency and minimising safety concerns while lifting and rotating heavy workpieces, the Key Plant Port-A-Lift Elevating Headstock and Tailstock is your ultimate solution.

Our PAL Series is designed to provide maximum efficiency and throughput while minimising safety concerns during heavy workpiece handling. This innovative system ensures a seamless and safe elevation of both the headstock and tailstock, thanks to a hardened stainless-steel screw with a low friction re-circulating ball screw and nut, all electrically synchronised.

Our Port-a-Lift model capacities include 6000lb, 10,000lb, 15,000lb, and 25,000lb, with each capacity per headstock. When used in conjunction with a tailstock, the capacity is doubled, allowing for versatility in handling a range of workpieces.

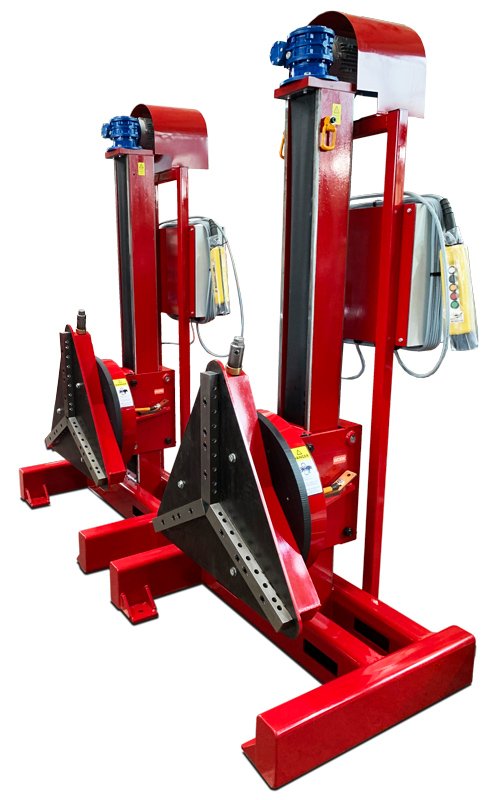

A row of Key Plant Automation Port A Lift elevating headstocks

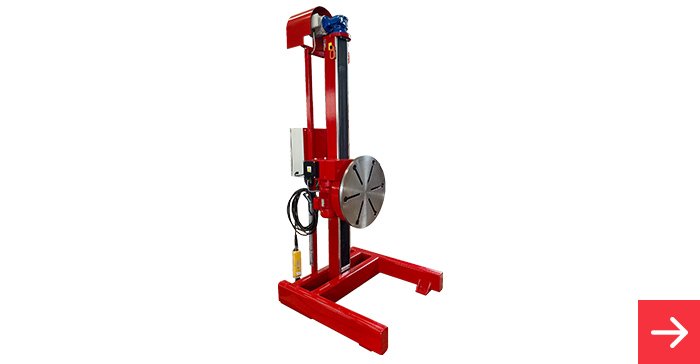

A Key Plant Automation Port A Lift elevating headstock

PAL6

6000lb Elevating Headstock
710mm table diameter

A Key Plant Automation Port A Lift elevating headstock

PAL10

10,000lb Elevating Headstock
710mm table diameter

A Key Plant Automation Port A Lift elevating headstock

PAL15

15,000lb Elevating Headstock
920mm table diameter

A Key Plant Automation Port A Lift elevating headstock

PAL25

25,000lb Elevating Headstock
1220mm table diameter

Port-A-Lift Options and Features

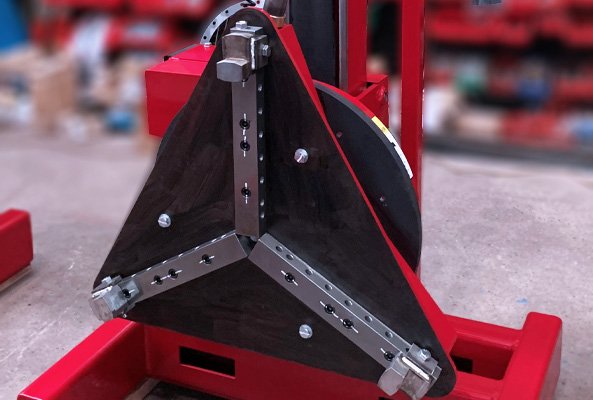

X3 Gripper welding chuck option

X3 Chuck

Integrate our high quality and robust X3 3 jaw chuck for internal and external clamping.

A close up of a control pendant

Pendant

Port-A-Lifts are equipped with a standard wired pendant. We also offer advanced alternatives.

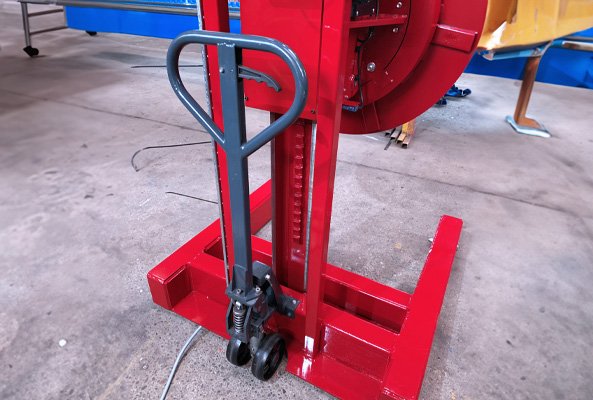

A pallet jack option for the Port-A-lift

Pallet Jack

Lift and move your Port-A-Lift safely and easily by integrating the pallet jack style option,

A selection of Elbow Jigs for welding pipe elbows

Elbow Jigs

 Ideal for welding elbow joints and alternating direction tasks. Various diameters available.

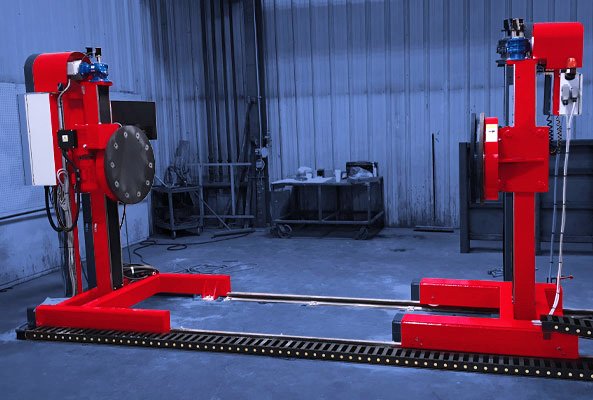

Floor rail option

Floor Rails

Floor rail integrated systems are an ideal solution for welding, fabrication and assembly projects of varying vessel lengths.

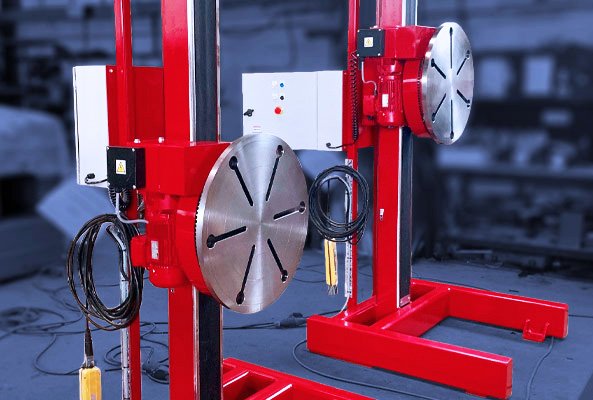

Face plate options

Face Plates

Depending on your application, we offer the option of face plates with plain or t-slots for your Port-A-Lift.

Man-O-Matic controller installation

Man-O-Matic

The innovative Man-O-Matic controller enables a sequence of pre-determined positions to be set.

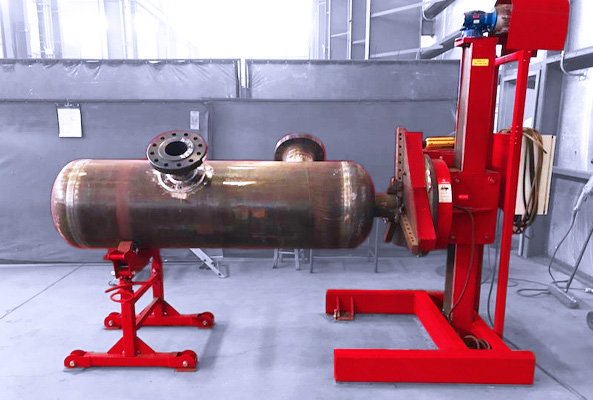

Port-A-Lift headstock with pipe idler integration

Integration

Optimise productivity by integrating your Port-A-Lift with other Key Plant Automation equipment.

Man-O-Matic

Optimise productivity with
programmable automated welding sequences

We offer optional software for our headstock & tailstocks, and positioning equipment portfolio.

Man-O-Matic is an innovative Key Plant controller that enables a sequence of pre-determined positions to be set. The operator selects the sequence for the component being welded and by initiating a forward or reverse button, foot switch or interfaced equipment such as a trigger pull from a semi-automatic wire feeder the weldment is then moved to the next pre-programmed position.

Buy and hire
Port-A-Lift Headstocks.

Direct from the Manufacturer – Key Plant Automation

Whether you’re welding manually or utilising automation, the Port-a-Lift system from Key Plant Automation is your key to maximising flexibility, safety, and productivity. Elevate your welding experience and contact us today to learn more about the Port-a-Lift Elevating Headstock and Tailstock.

We understand that each welding project is unique, which is why we offer the flexibility to create specialised designs that suit larger or unique components, ensuring you have the right tool for the job.
